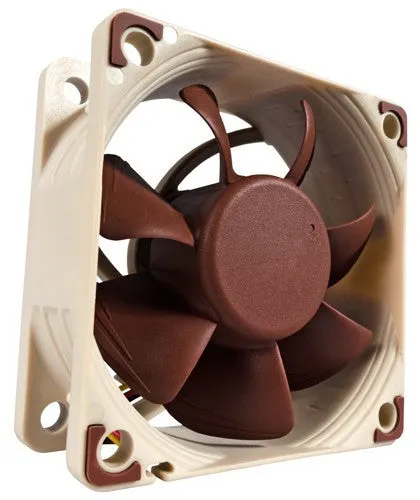

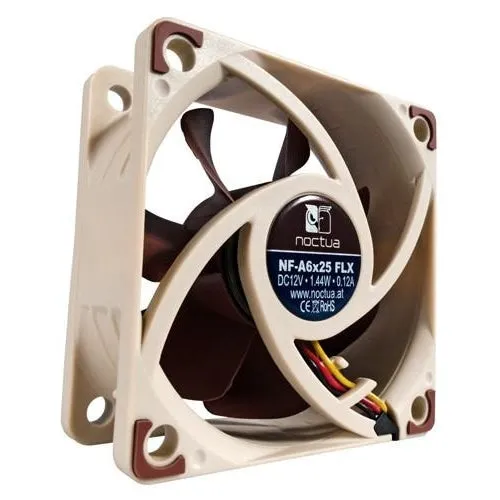

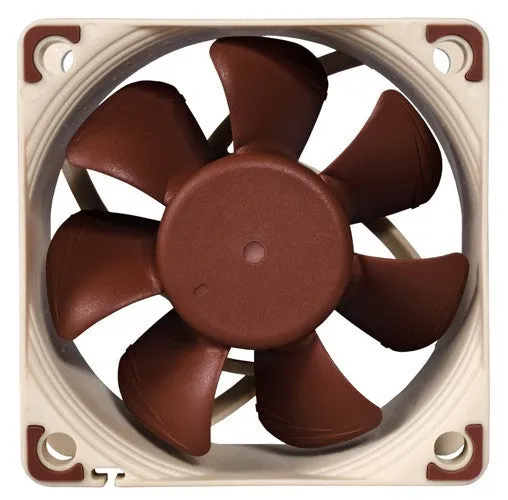

Noctua Quiet Computer Cooling 60x60x25mm Fan NF-A6x25 FLX

840556103325

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua's AAO frame, the NF-A6x25 FLX is a highly optimized, premium quality quiet fan in 60x25mm size. Smooth Commutation Drive technology and Noctua's reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, Low-Noise Adaptors and 6 years manufacturer's warranty, the NF-A6x25 is a premium choice for the highest demands.

Flow Acceleration Channels
The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. button

Varying Angular Distance Reduced Motor Hub Size
Thanks to its streamlined, compact motor design, the NF-A6x25's motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25's superior airflow and pressure performance.

Heptaperf AAO Frame
Noctua’s AAO (Advanced Acoustic Optimization) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency. button

Stepped Inlet Design Stepped Inlet Design
Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments. button

Inner Surface Microstructures Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. button

Integrated Anti-Vibration Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimize the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

SSO2 Smooth Commutation Drive 2
The latest version of Noctua’s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A6x25 remarkably quiet even at very close distance. button

SSO2 SSO2 Bearing
The NF-A6x25 features the further optimized second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilization, precision and durability. button

LNA 3 speed settings for full flexibility
Providing 3000, 2400 and 1600 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A6x25 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.

Cabling Options Extensive Cabling Options
The fan’s short 20cm primary cable minimizes cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows to connect the fan directly to the power supply.

Warranty 6 years manufacturer's warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A6x25 features an MTBF of more than 150.000 hours rating and comes with a full 6 years manufacturer's warranty.

FEATURES:
Blade Geometry A-Series with Flow Acceleration Channels
Frame Technology AAO (Advanced Acoustic Optimisation)
Rotational Speed with L.N.A. ( /- 10%) 2400 RPM
Rotational Speed with U.L.N.A. ( /- 10%) 1600 RPM
Airflow with L.N.A. 23,5 m³/h
Airflow with U.L.N.A. 16,7 m³/h
Acoustical Noise with L.N.A. 14,5 dB(A)
Acoustical Noise with U.L.N.A. 8,2 dB(A)
Static Pressure 2,18 mm H2O
Static Pressure with L.N.A. 1,41 mm H2O
Static Pressure with U.L.N.A. 0,61 mm H2O
Max. Input Power 1,44 W
Max. Input Current 0,12 A
Voltage 12 V
MTBF > 150.000 h

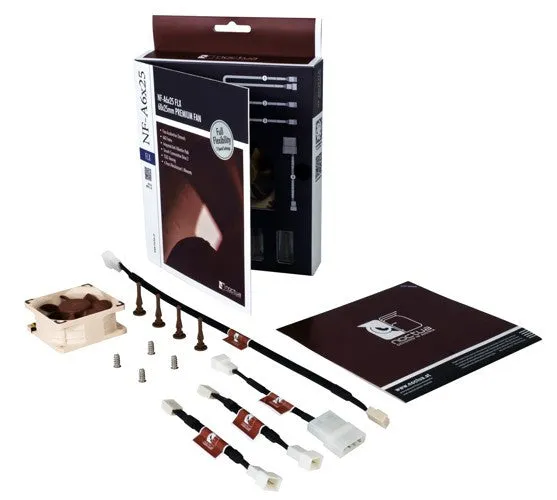

ACCESSORIES:
Low-Noise Adapter (L.N.A.)
Ultra-Low-Noise Adapter (U.L.N.A.)
3:4-Pin Adaptor
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
Warranty 6 years

upc 842431014061
